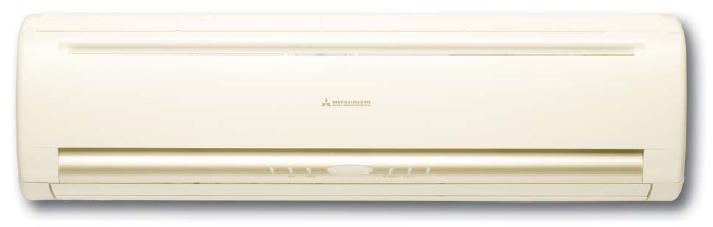

SRK ZEA-Series 63, 71 & 80inverter comparison table: (part 1-operation data) Next>>
|
R410A WALL MOUNTED TYPE / SINGLE SPLIT INVERTER SPECIFICATIONS
|
| operation data |
| Model (indoor/Outdoor) |
SRK63ZEA-S/SRC63ZEA-S |
SRK71ZEA-S/SRC71ZEA-S |
SRK80ZEA-S/SRC80ZEA-S |
| Cooling Capacity (KW) |
0.900~7.100 |
0.900~8.000 |
0.900~8.400 |
| Cooling Nominal (50% pt ld)(KW) |
6.300(3.150) |
7.100(3.550) |
8.000(4.000) |
| Sensible Capacity (KW) |
5.000 |
5.600 |
5.850 |
| Dehumidifying Factor (KW) |
1.300 |
1.500 |
2.150 |
| Power Input (KW/hr) |
1.840(0.600) |
2.210(0.710) |
2.840(0.840) |
| EER |
3.42(5.25) |
3.21(5.00) |
2.82(4.76) |
| Energy Label(star label) |
5 Star |
4.5 Star |
3 Star |
| Sensible Heat Ratio |
0.79 |
0.78 |
0.73 |
| Current (Amps) |
8.1 |
9.7 |
12.0 |
| Sound Pres Lv JIS-Indoor dB(A) |
Hi 43, ULo 26 |
Hi 45, ULo 26 |
Hi 46, ULo 26 |
| Sound Pres Lv JIS-Outdoor dB(A) |
47 |
52 |
54 |
| Sound Power Level |
58 |
63 |
69 |
| Heating Capacity (KW) |
0.900-9.000 |
0.900-10.500 |
0.900-10.800 |
| Heating Nominal(50% pt ld)(KW) |
7.100(3.550) |
8.000(4.000) |
9.000(4.500) |
| Power Input (KW/hr) |
1.860(0.690) |
2.210(0.790) |
2.740(0.930) |
| COP |
3.82(5.14 |
3.61(5.06) |
3.28(4.84) |
| Energy Lable (star label) |
5 Star |
4.5 Star |
3.5 Star |
| Current (Amps) |
8.2 |
9.7 |
11.5 |
| H2 Capacity (KW) |
7.000 |
7.350 |
7.800 |
| H2 Power Input (KW/hr) |
2.390 |
2.690 |
2.980 |
| H2 COP |
2.92 |
2.73 |
2.62 |
|
(Range of operation: Cooling -15 degrees C to 43 degrees C, Heating -15 degrees C to 20 degrees C. AS/NZS1217).
(Performance and efficiency data in accordance with AS/NZS 3823.1.1 T1).
|
